Ford/Lincoln/Mercury 2019-03

BEFORE YOU INSTALL

Warning: Incorrect installation of this part will result in damage to the sensor. This sensor must be clocked properly before installation. Failure to clock the part will result in the part being installed 180-degrees from the correct position.

Before installation, fully rotate the sensor’s internal rotor counterclockwise with a screwdriver. This will ensure proper positioning.

BEFORE YOU INSTALL

INstallation Instructions

Questions? Need Assistance?
CALL BEFORE YOU INSTALL 800-913-9620

Ford Throttle Position Sensor Installation Tips

  • maxresdefault

    Ford Throttle Position Sensor Installation Tips

  • maxresdefault

    Throttle Position Sensor (TPS) Installation - Dodge, Chrysler, Plymouth 2.7L

  • maxresdefault

    Jeep Cherokee Throttle Position Sensor Replacement

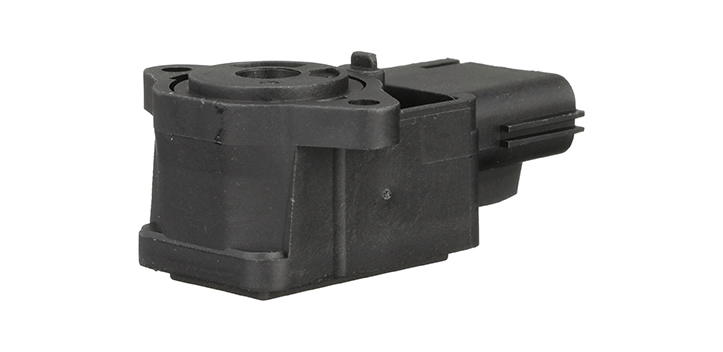

  • th381_slider_1jpg

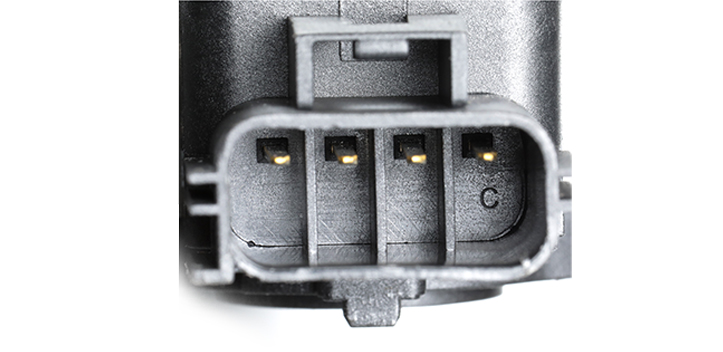

  • th381_slider_2jpg

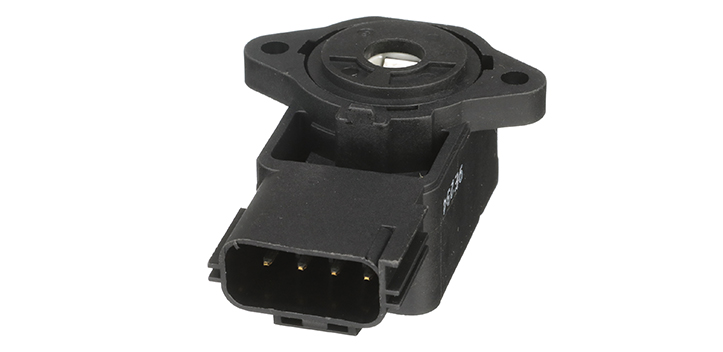

  • th381_slider_3jpg

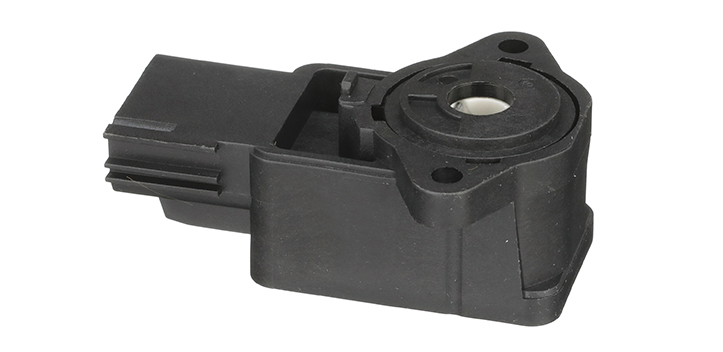

  • th381_slider_4jpg

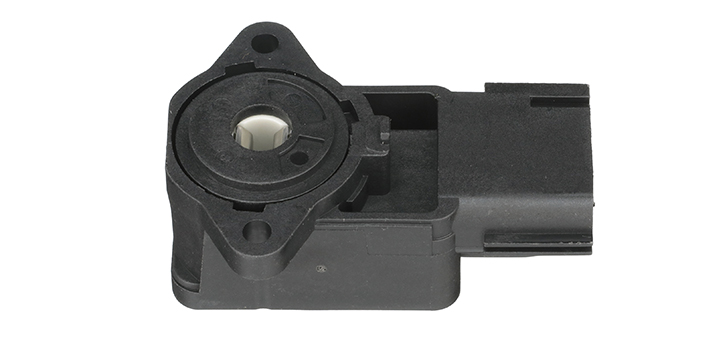

  • th381_slider_5jpg

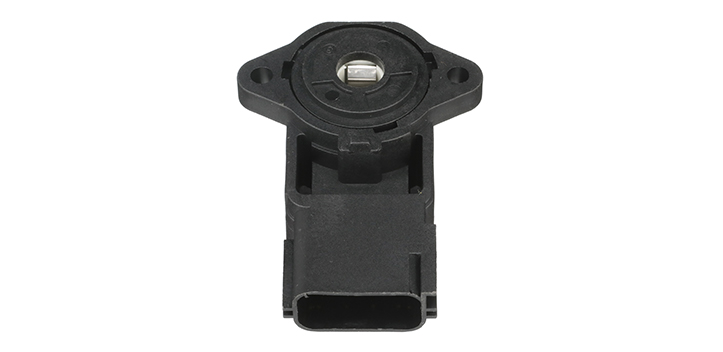

  • th381_slider_6jpg

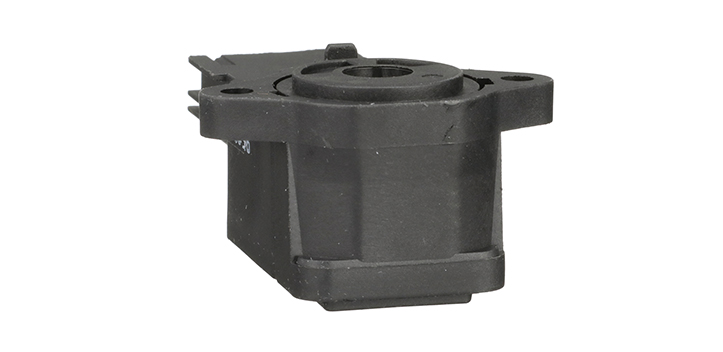

  • th381_slider_7jpg

Features & Benefits

  • Integrated circuit (IC) effectively measures rotation of small magnet attached to throttle shaft and is calibrated to provide accurate, linear output characteristics

  • Undergoes automated testing to calibrate and electronically lock output voltage accuracy, linearity, and slope versus throttle angle

  • Custom elastomeric seal protects sensor from environmental under hood elements such as dust, vapor, and liquids

  • Featuring the broadest sensor coverage in the market, we meet the service professionals needs with the highest quality product every time they open the box


Tech Tip: The Throttle Position Sensor must be clocked properly before installation

Before installation, fully rotate the sensor’s internal rotor counterclockwise with a screwdriver. This will ensure proper positioning. Failure to clock the part will result in the part being installed 180-degrees from the correct position.

Align sensor with throttle body shaft at 2 o‘clock position. Slowly rotate Sensor counterclockwise until upright. Align the sensor locating tab with the hole in the throttle body and press the sensor onto the throttle body.
